Projections and Mappings

Overview

When Etendo retrieves data from the database, it often returns more fields than a given integration needs. Projections let you define exactly which fields are included, reducing the amount of data transferred and improving performance. (Technical detail: this is implemented using Spring Data JPA projections on the persistence layer.)

In such cases, we might want to retrieve data as objects of customized types. These types reflect partial views of the root class, containing only the necessary properties. This is where projections are useful.

Use Cases

Projections and mappings are used to control which Etendo data fields are shared with, or received from, an external system — such as an e-commerce platform or a marketplace. The connection between Etendo and that external system is made through an API (a standard communication channel between software applications). Two common scenarios are:

  • Exposing Etendo data to an external system: an e-commerce platform reads product or order data from Etendo through a read-only API connection generated by the DAS service.
  • Importing data from an external system into Etendo: customer or order data from a marketplace is sent into Etendo Classic through a write API connection.

Use projections to control exactly which fields are exposed or consumed, keeping the integration surface minimal and explicit.

Projections and Mappings Window

Application > Etendo RX > Projections and Mappings

A projection is a set of specific fields from an entity or combined fields from multiple entities. Projections are useful when we need to retrieve only a subset of data, as it reduces the amount of data we need to retrieve from the database, leading to improved performance.

Info

This window is the central place to create data reading and writing endpoints in Etendo.

This window uses the DAS service (Data Access Service — an Etendo RX background service that reads the configuration you define here and automatically creates the API connection points used to exchange data with external systems). The DAS service reads the configuration defined here and generates the corresponding endpoints when it is launched.

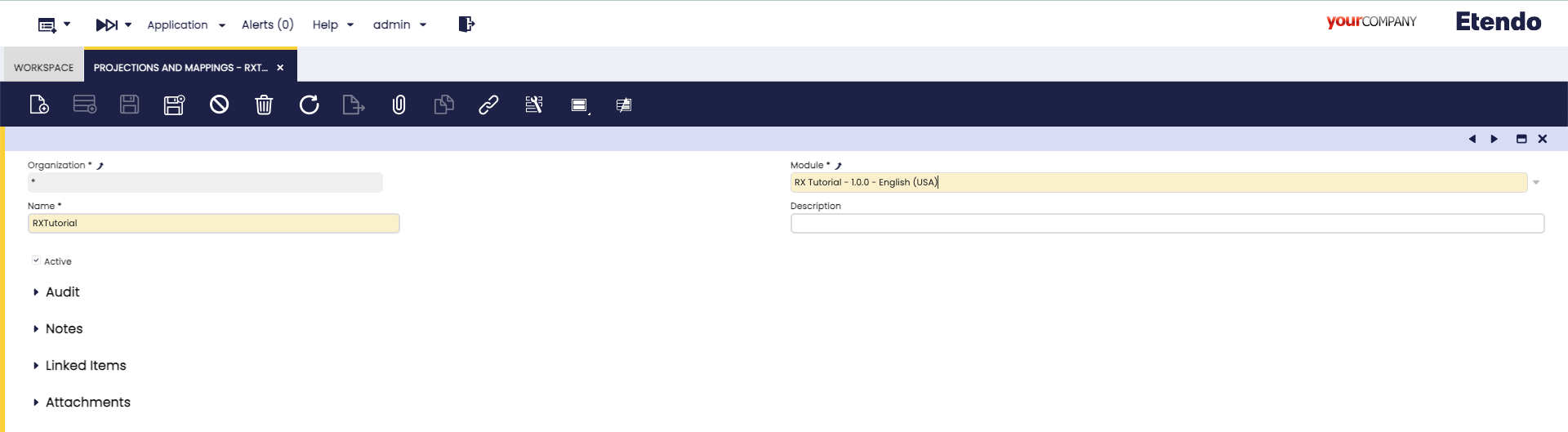

To create a new projection in Etendo, it is necessary to complete the fields in the header of the Projections and Mappings window.

  • Organization: Organizational entity within client.
  • Name: It describes the name of the projection. The maximum amount of characters for this field is 10.
  • Module: It indicates the module the element forms part of. This is the module in which the configuration is exported.
  • Description: Description of the projection.
  • Active: A check to indicate whether this projection is available or disabled.

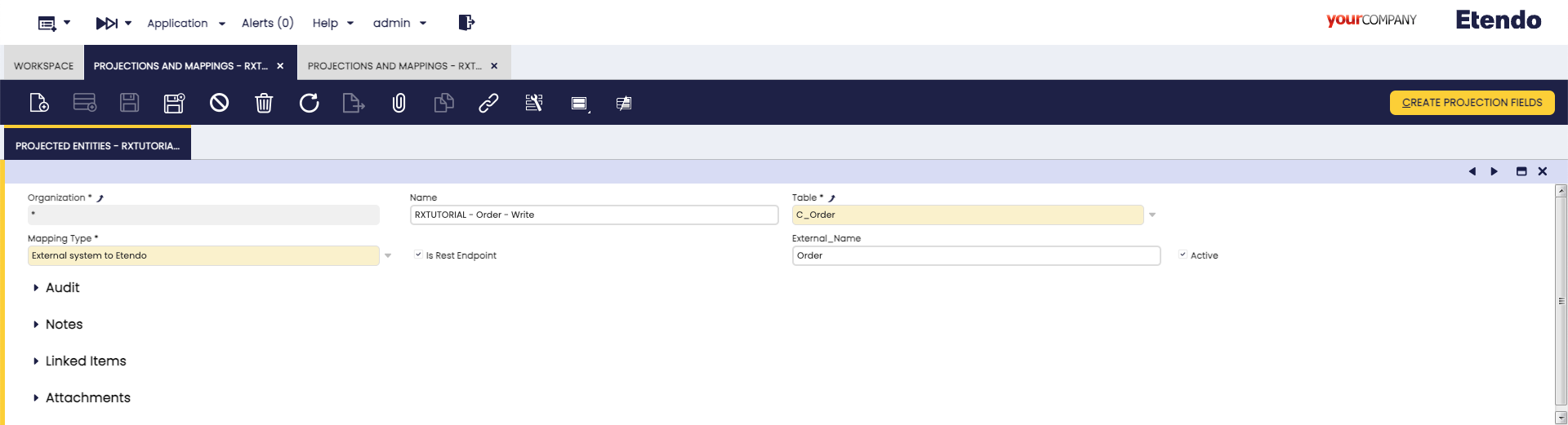

Projected Entities Tab

In this tab, the entities to be projected can be defined. They can have two types of projections: Read and Write. This means that, when interacting with an external system, it is possible to read the information in the Etendo Classic database to expose it to the other system. The other option is to write information into the Etendo Classic database, that is, to extract external system information to use it in Etendo.

When referring to an entity to project, this entity is related to a specific table.

Info

Whether you need one or both projection types depends on your integration direction: create a Read type to expose Etendo data to an external system, a Write type to import external data into Etendo, or both if you need bidirectional integration.

Fields to note:

  • Organization: The corresponding organization of the entity
  • Name: This field is autocompleted according to the options selected in the Table and Mapping Type fields, adding Read or Write accordingly.
  • Table: It is the identifier that connects the Etendo entity to project with the database table, responsible to store the entity information.
  • Mapping Type: In this case, there are two options: Etendo to external system and External system to Etendo. In the case of the Read type, the option to select is Etendo to external system. In the case of the Write type, the option to select is External system to Etendo.

  • Is Rest Endpoint: Checkbox to allow the service to generate the endpoint or not.

    Info

    This box should not be checked, for example, when it is not necessary to expose a subentity endpoint.

    • External_Name: parameter to call the API. It must be unique but it is possible to have more than one name for each entity. By default, it is autogenerated with the entity name, but in case of generating more than one, they should have different names.
    • Active: A check to indicate whether this record is available or not.

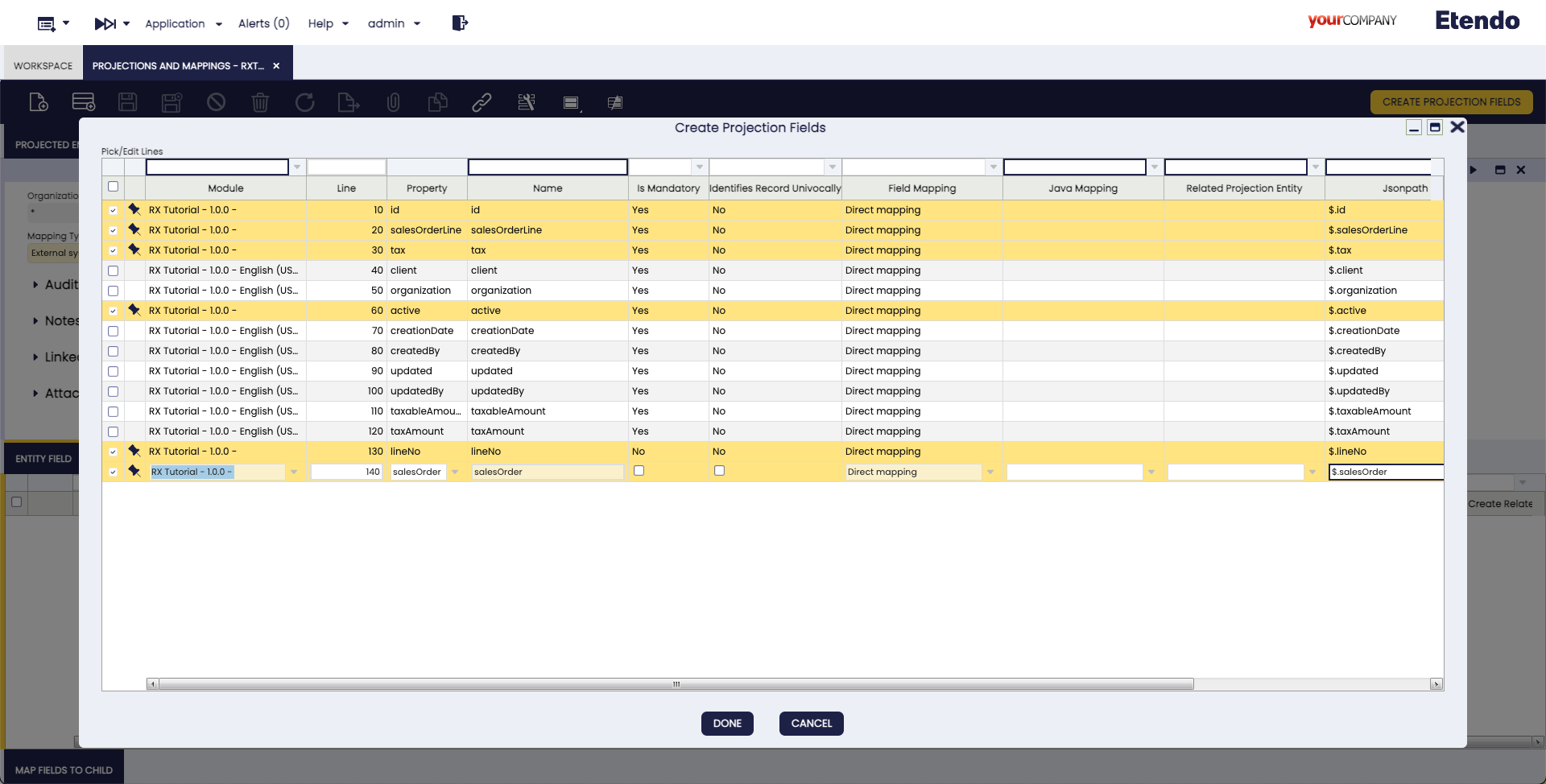

Create Projection Fields Button

With this button, a pop up window is shown where you can find a list of all the fields to project and select the necessary ones. This process does not include List and Identity type projections.

Info

The mandatory fields to project can be filtered with the Is mandatory column.

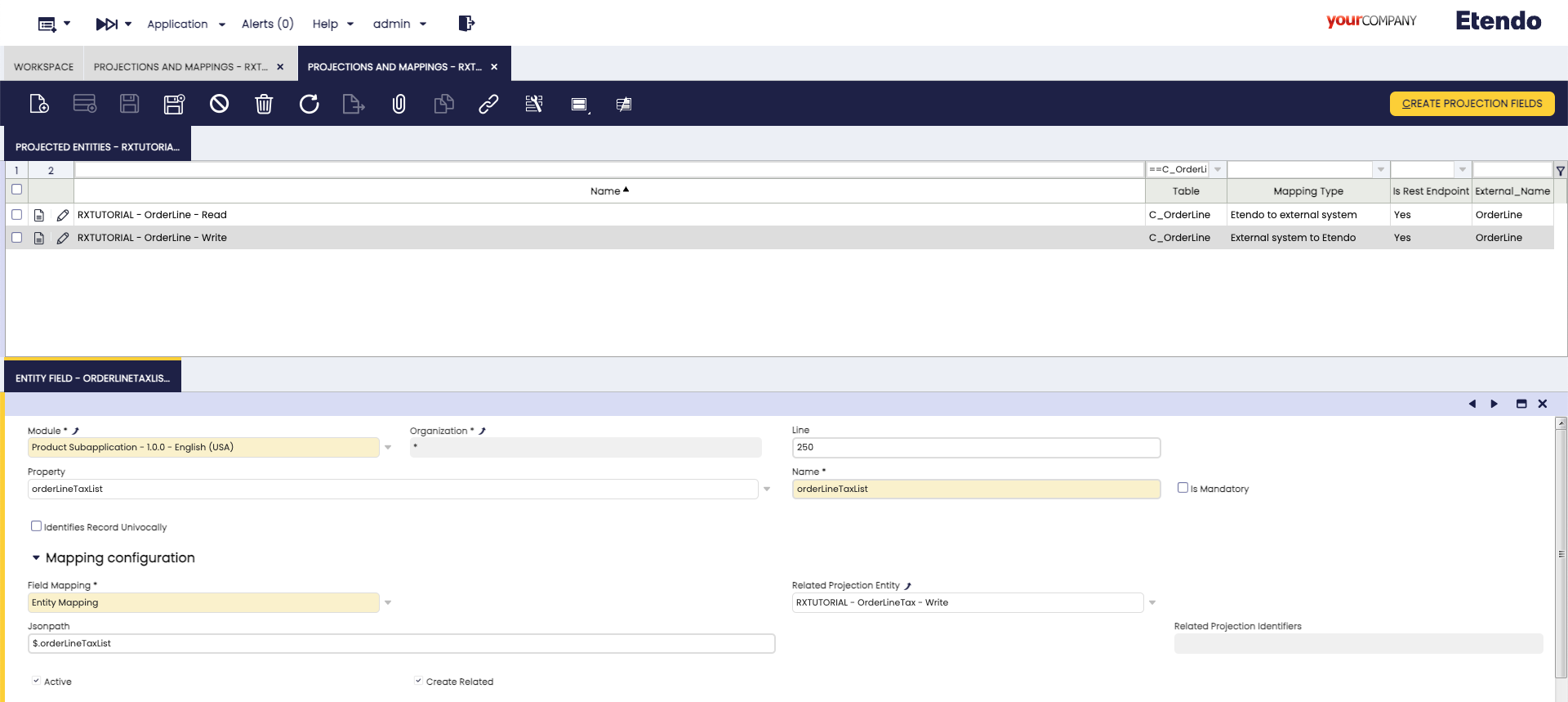

Entity Field Subtab

In this subtab, each entity field to be included in the projection can be defined by the developer.

Fields to note:

  • Module: It indicates the module the element forms part of. This is the module in which the configuration is exported.
  • Organization: The corresponding organization of the entity
  • Property: This field has 3 types of options:
    • _identifier: This option allows projecting the field/s defined as identifier in the Tables and Columns window. This option always projects a string.
    • Standard: In this case, it is possible to select all the standard fields from the projected entity. Ex: string, number, date types, etc. Also, it is possible to navigate through the different entities. Ex: product.name, businessPartner.name, etc
    • *List: The properties that finish in "List", allow projecting a list of related entities. These lists are autogenerated from the columns with the Link to Parent Column checkbox selected. Ex: the property OrderLineList of the Order entity is generated since the C_Order_ID column from the C_OrderLine table is related with C_Order table.
  • Name: Output JSON Key. It must be unique but it is possible to have more than one name for each property. By default, it is autogenerated with the property name, but in case of generating more than one, they should have different names.
  • Identifies Record Univocally: Checkbox to use this record as an identifier. If no field has this check selected, the database ID of the table will be used.

Mapping Configuration

  • Field Mapping:
  • Direct Mapping: each property is shown as it is.
  • Java Mapping: It is a customizable mapping and can be configured through the Java Mappings window. If this option is chosen, it allows you to define more complex mappings or implement a specific logic The result of the mapping will be Json type.
  • Entity Mapping: this option is used when it is necessary to relate two different projections. In this case, the Related Projection Entity field is enabled to select the projected entity. In case of projecting a list of elements, the selected entity is assigned to each item of the list.
  • Constant Mapping: If you choose this option, the constant value defined in the corresponding field is projected.
  • Related Projection Entity: Extra field shown when Entity Mapping option above is selected. Here, you can select the property to be projected for each entity in the mapping.
  • Constant Value: Only available when Constant Mapping is selected as the Mapping type. Here, you define the constant value to be used in the mapping.
  • Related Projection Identifiers: Extra field shown when Entity Mapping option above is selected. It is an information field to revise the identifier of the mapped entity.
  • Active: A check to indicate whether this record is available or disabled.

Fields to note:

  • Module: It indicates the module the element forms part of. This is the module in which the configuration is exported.
  • Organization: The corresponding organization of the entity
  • Property: This field has 3 types of options:
    • _identifier: This option allows projecting the field/s defined as identifier in the Tables and Columns window. This option always projects a string.
    • Standard: In this case, it is possible to select all the standard fields from the projected entity. Ex: string, number, date types, etc. Also, it is possible to navigate through the different entities. Ex: product.name, businessPartner.name, etc
    • *List: The properties that finish in "List", allow projecting a list of related entities. These lists are autogenerated from the columns with the Link to Parent Column checkbox selected. Ex: the property OrderLineList of the Order entity is generated since the C_Order_ID column from the C_OrderLine table is related with C_Order table.
  • Name: Output JSON Key. It must be unique but it is possible to have more than one name for each property. By default, it is autogenerated with the property name, but in case of generating more than one, they should have different names.
  • Is Mandatory: Checkbox only available for "Write" projections. This indicates that the projected property is mandatory when a new item is created.
  • Identifies Record Univocally: Checkbox to use this record as an identifier. If no field has this check selected, the database ID will be used.

Mapping Configuration

  • Field Mapping:
  • Direct Mapping: each property is shown as it is.
  • Java Mapping: It is a customizable mapping and can be configured through the Java Mappings window. If this option is chosen, it allows you to define more complex mappings or implement a specific logic The result of the mapping will be Json type.
  • Entity Mapping: this option is used when it is necessary to relate two different projections. In this case, the Related Projection Entity field is enabled to select the projected entity. In case of projecting a list of elements, the selected entity is assigned to each item of the list.
  • Constant Mapping: If you choose this option, the constant value defined in the corresponding field is projected.
  • Create related: It enables the creation of related elements from a selected entity. Only available for Write type mappings.
  • Related Projection Entity: Extra field shown when Entity Mapping option above is selected. Here, you can select the property to be projected for each entity in the mapping.
  • Jsonpath: language to extract properties from Json objects. For more information, visit Json.
  • Constant Value: Only available when Constant Mapping is selected as the Mapping type. Here, you define the constant value to be used in the mapping.
  • Related Projection Identifiers: Extra field shown when Entity Mapping option above is selected. It is an information field to revise the identifier of the mapped entity.
  • Active: A check to indicate whether this record is available or disabled.

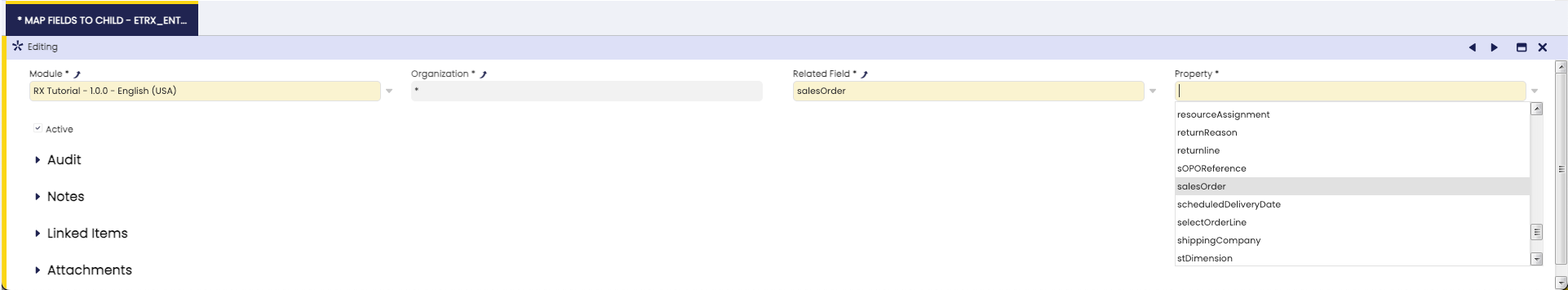

Map Fields to Child

This subtab is shown if the Create related check in the Entity Field subtab is selected. It allows the possibility to provide information from the parent fields to the child records. The records created in this subtab are useful to connect the projected entity fields to properties that belong to parent entities.

Fields to note:

  • Module: It indicates the module the element forms part of. This is the module in which the configuration is exported.
  • Organization: The corresponding organization of the entity.
  • Related Field: Shows field options of the related projected entity already defined.
  • Property: If it is necessary to create a new field, this is the property to use to create it.
  • Active: A check to indicate whether this record is available or disabled.

Example:

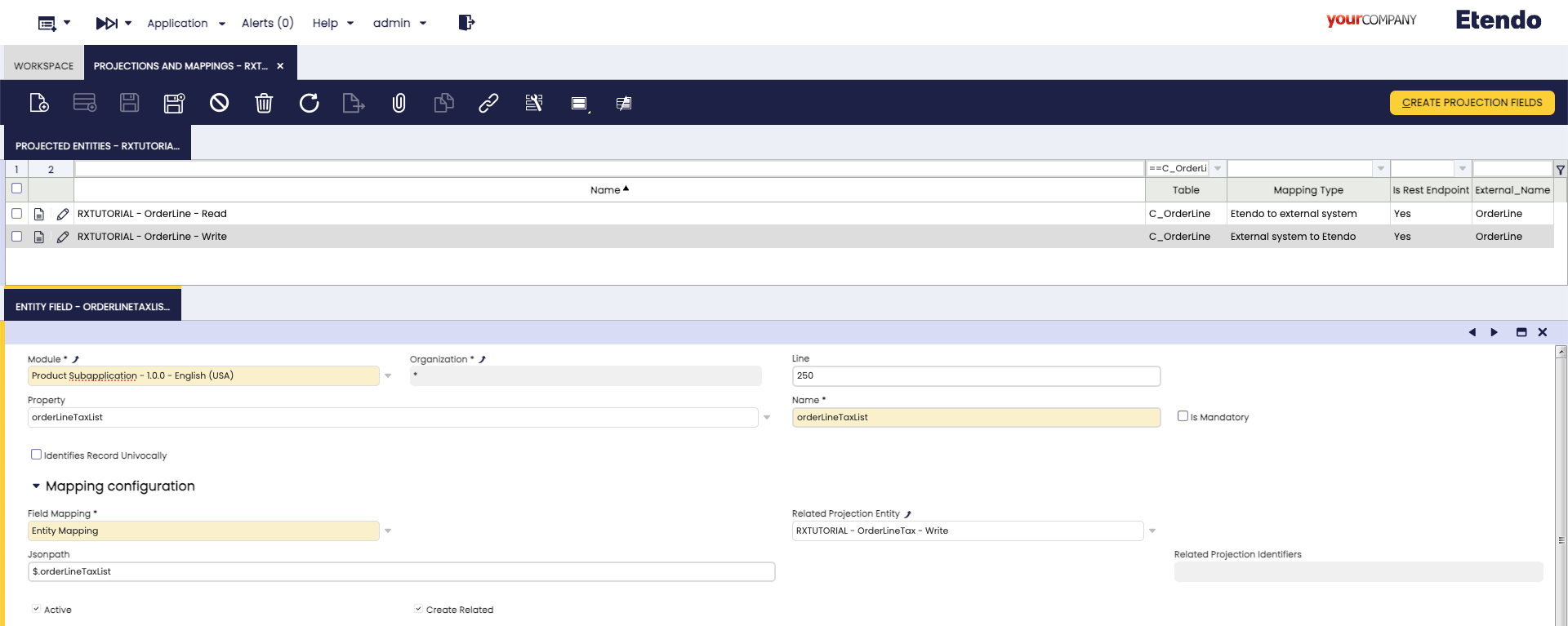

In this example, when writing a projection on the C_OrderLine table and projecting the orderLineTaxList (with the list of applicable taxes for each line), it is necessary to first select the Create Related checkbox. This option will create the related elements in the input list. However, the tax lines require a mandatory reference to the header, specifically the Order.

For this, the information must be transmitted from the source entity to the mapped entity. This can be done by adding a new record in the Map Fields to Child tab. In the Related Field, select the child entity field corresponding to the projected entity (e.g., the Sales Order field in the OrderLineTax entity). In the Property field, select the field from the source entity (e.g., Sales Order from OrderLine entity).

This setup ensures that when new order lines are created, the related taxes reference the original order. This configuration is only necessary if the mapped column does not have the Link to Parent Column checkbox selected. In this example, this refers to the Sales Order column in the C_OrderLineTax table.

Tables and Columns Window

Application > Application Dictionary > Tables and Columns

In this window, it is possible to define table associated searches. These are custom filters with HQL queries.

This window also allows the creation of search endpoints, using the DAS service (Data Access Service — an Etendo RX background service that reads the configuration you define here and automatically creates the API connection points used to exchange data with external systems). This service, based on this window configurations, dynamically generates the endpoints when launched.

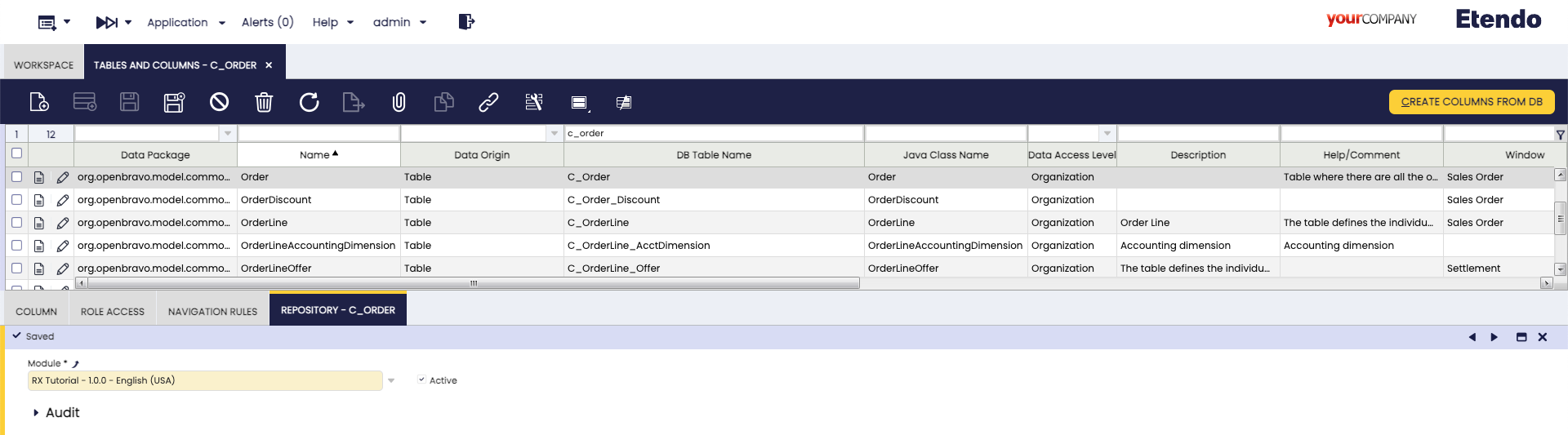

Repository Tab

The Repository tab is used to register a table so the DAS service can generate filtered search connections for it — for example, retrieving only orders belonging to a specific business partner. Registering a repository here enables the DAS service (Data Access Service — an Etendo RX background service that reads the configuration you define here and automatically creates the API connection points used to exchange data with external systems) to generate custom filtered search connections — beyond the standard create, read, update, and delete operations — for the selected table. Use the Repository tab when you need filtered queries (for example, "get all orders for a specific business partner") that are not covered by the default connections.

To register a repository, go to Tables and Columns, select a table and, in the Repository tab, create a new record defining the module in development where the configurations are exported.

Search Subtab

Then, we can define searches to get filtered data from the selected table.

Search example in the C_Order table

Fields to note:

  • Method Name: the name of the search which is used in the endpoint generation.
  • Query: HQL query to filter the table elements.
Search Parameter Subtab

In this subtab, it is possible to define parameters to use in the search.

Parameter example used in the previous section search

Fields to note:

  • Name: Parameter name
  • Type: Parameter type. It is a dropdown with the available base types.

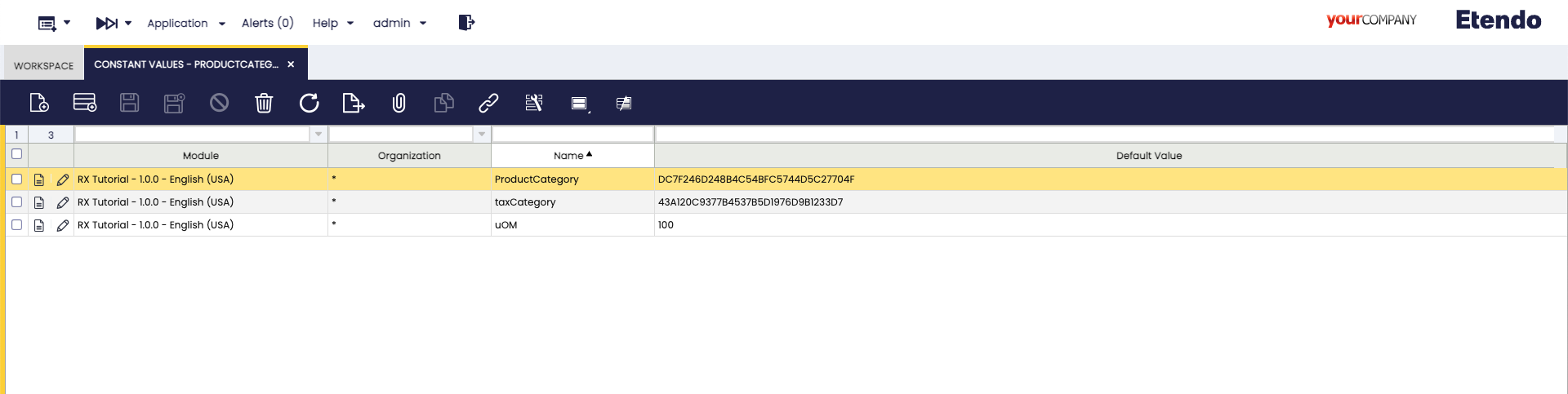

Constant Values Window

Application > Etendo RX > Constant Values

In this window, it is possible to define constant values to be used for entity fields in which the information must not be modified. This configuration is done in the Projections and Mappings window.

Fields to note:

  • Module: It indicates the module the value forms part of. This is the module in which the configuration is exported.
  • Organization: Organizational entity within client.
  • Name: It describes the identifier name of the value.
  • Constant Value: It describes the value to set, for example, an entity ID.
