How to Create a Report with iReport

IMPORTANT: THIS IS A BETA VERSION

This page is under active development and may contain unstable or incomplete features. Use it at your own risk.

Overview

The goal of this section is to describe the steps required to create a new report in Etendo. The example explained is a simple report with a list of products.

Setting up iReport

You need to download iReport, a graphical tool that allows you create and modify JasperReports templates (.jrxml files).

  • Download iReport 4.0.1
  • On Linux: just download the .tar.gz or .zip file and uncompress it, execute the binary
    bin/ireport
  • On Windows: Download and execute the .exe file

Configuring iReport

Some properties of iReport need to be modified in order to work properly. You need to make sure:

  • You modified the JasperReport property net.sf.jasperreports.awt.ignore.missing.font and set it to true
  • Not use any Scriplet class
  • Use Java as default expression language

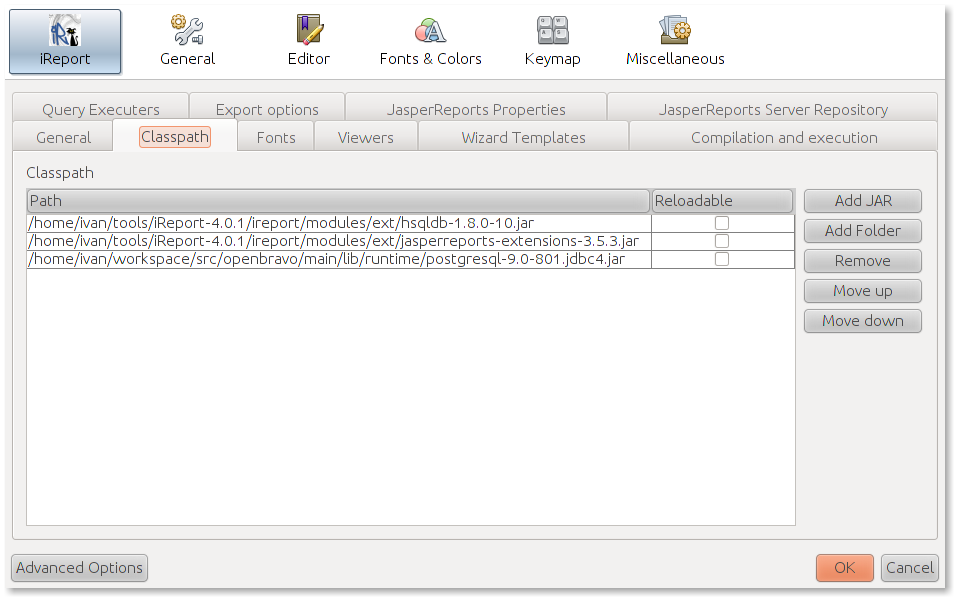

Setting up Classpath

  • Open from the menu options: Tools > Options
  • Move to Classpath tab
  • Click Add Jar button
  • Go to your Etendo sources folder. Under lib/runtime folder, search for postgresqljdbc.jar and pick it.
  • Click OK

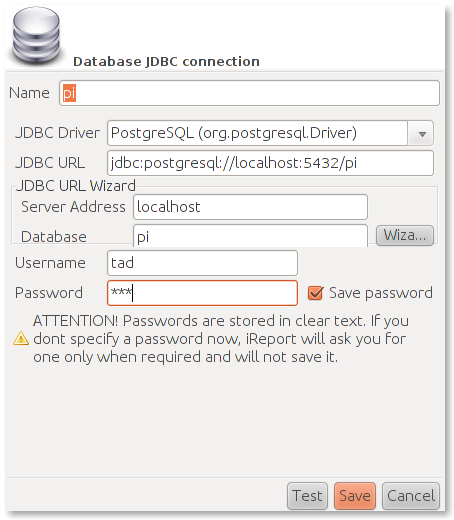

Defining a Database Connection

  1. Click the Report Datasources icon
  2. Click New
  3. Pick Database JDBC Connection and click Next

  4. Fill all the fields:

    • Name: etendo (or any name you like, e.g. pi)
    • JDBC Driver: PostgreSQL (org.postgresql.Driver)
    • Server Address: your database server address, e.g. localhost
    • Database: pi (or the name of your database)
    • Username: tad (you can check your username/password in gradle.properties configuration file)
    • Password: tad

  5. Click Wizard button to generate the JDBC URL

  6. Test your connection
  7. Save

Creating the Template

  1. Go to File > New
  2. Pick Report

  3. Click Launch Report Wizard

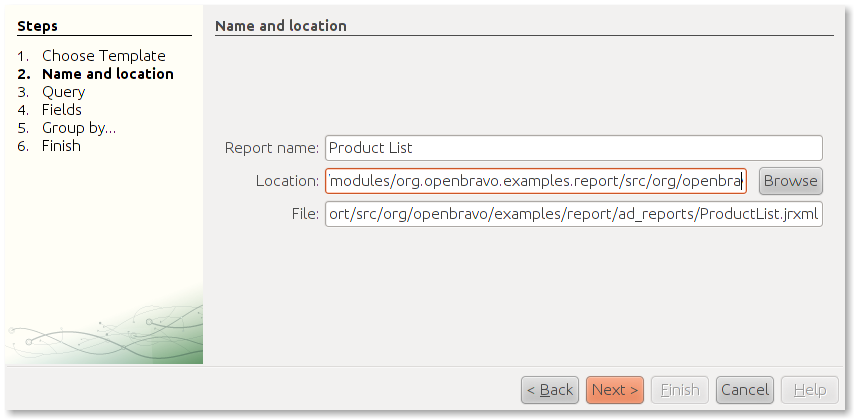

  4. Define a Report Name.

  5. Define the File Location. Notice that your .jrxml template must be placed under the src folder of your module. More information on the project folder structure. A common convention is to place your reports in a ad_reports folder, e.g. modules/org.your.java.package/src/org/your/java/package/ad_reports. This is a convention, not a requirement, but you need to remember where you placed your template.

  6. Define the query to extract the data

  7. Pick the report datasource previously defined

  8. The products are stored in the M_Product table

    SELECT m_product_id, value, name FROM m_product
    9. Click Next

  9. iReport defines the fields based on your query

  10. Pick all the fields and click Next

  11. Remember to clear the Scriptlet class and modify the Language for expressions

  12. Go to Window > Report Inspector

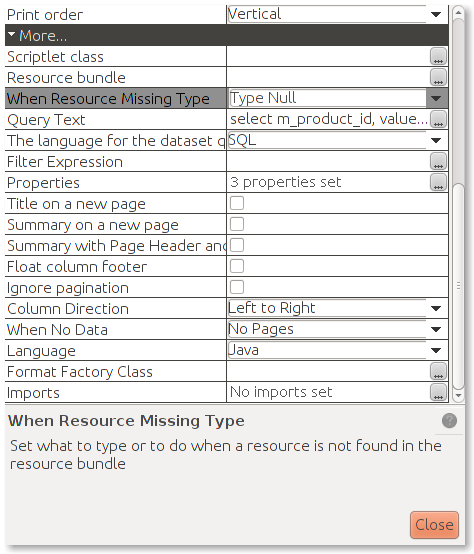

  13. In the report properties in the right, scroll down to More section:

    • Clear the Scriptlet class
    • Choose Java as Language

  14. Save your changes

  15. Put a static text as report title: Product List

  16. Place the fields in the Detail band and a title in the Column Header band

  17. Save your changes

  18. Click the Preview button to get a report preview

Note

It is recommended to use Dejavu fonts in jasper reports because these fonts support most of the characters in almost all languages​​. Besides, Dejavu typography is the family of fonts that Etendo included in jasperreports-fonts library.

Registering the Report in Application Dictionary

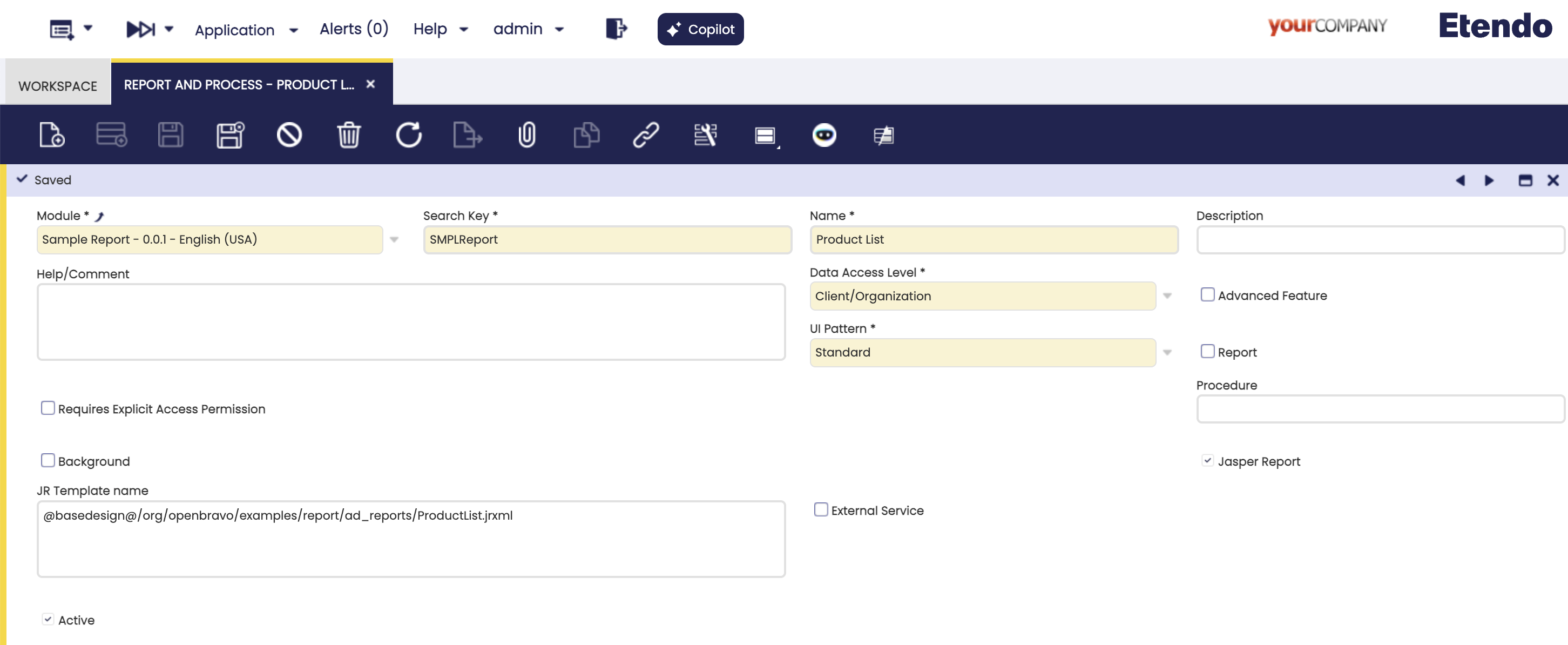

Creating the Report

  1. Using the quick-launch, under the System Administrator role, open: Report and Process window

    • You can find it in the menu: Application Dictionary > Report and Process

  2. Create a new record

  3. Fill all required fields

    • Module: Pick your module
    • Search Key: SMPLRProductList (Is a best practice to start with your module's DB_Prefix)
    • Name: Product List
    • Data Access Level: Client/Organization
    • UI Pattern: Standard
    • Jasper Report: Check

    • JR Template name :

      @basedesign@/org/openbravo/examples/report/ad_reports/ProductList.jrxml
      • @basedesign@ is a constant that you must use always, after that, starting with a slash you need to write the path to your jrxml template.

    Note

    Report checkbox must be unchecked.

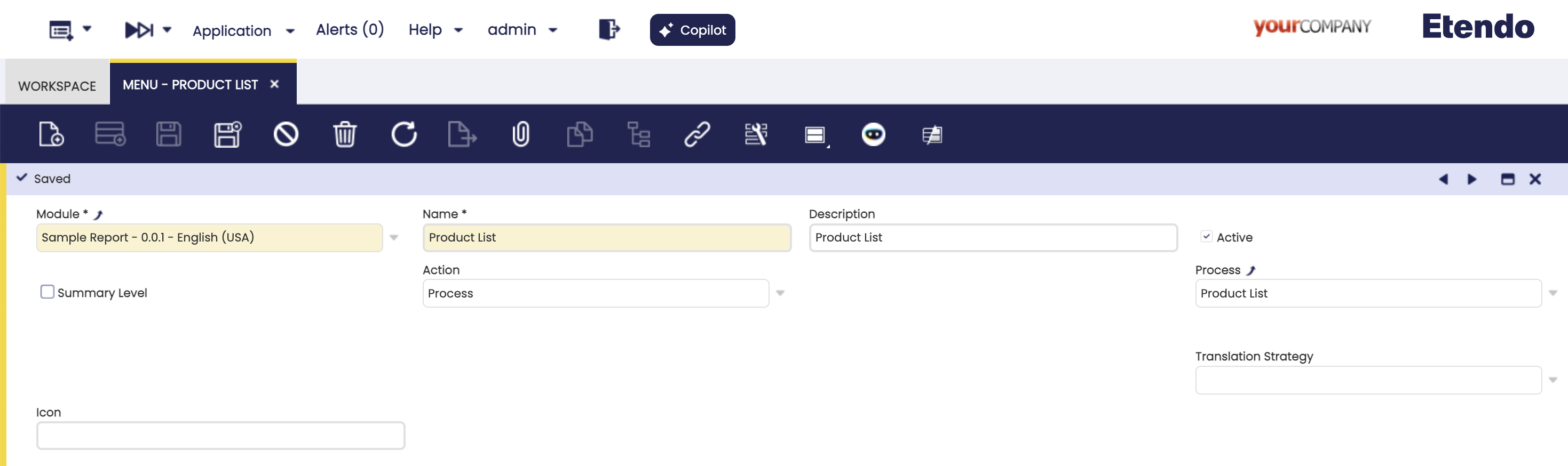

Creating the Menu record

  1. Using the System Administrator role, open the Menu window
  2. Create a new record

  3. Fill all required fields:

    • Module: Your module
    • Name: Name of the menu entry (Product List)
    • Description: You must enter a description. Although is not mark as required, it is for this type of reports
    • Action: Pick Process
    • Process: Pick your process (Product List)

Compiling

After you have registered the report and menu entry in the Application Dictionary, you need to compile to generated the the necessary code.

shell Title="Terminal" ./gradlew smartbuild --info

Once the compilation has completed, refresh your Eclipse project, and restart your Tomcat server.

Testing the Report

If you have completed all the steps, you should be able to open your Product List report form the quick-launch, or menu entry.

Creating a Report Using a Process Definition

It is possible to create a report using a process definition. For more information, visit How to Create a Report using Process Definition.
